Carport Solar Mounting System

The Carport Solar Mounting System is a building integrated solar support system designed specifically for parking spaces, which has the characteristics of convenient installation, high standardization, strong compatibility, single column support design, and good waterproof performance.

Product Detail

Product Tags

It has the following characteristics

1. High degree of standardization: This Carport Mounting System provides standard models of 2, 4, 6, and 8 vehicles with different specifications, and can also be customized according to customer needs.
2. Strong compatibility: The Mounting System can be suitable for various framed solar panels manufactured by different manufacturers, with strong adaptability.
3. Single Post Mount: The system adopts a single Post Mount design, which improves the efficiency of parking and convenient for vehicle entry and exit and good for door opening.
4. Large cantilever: The cantilever at the end of the carport beam can reach 2.5 meters, improving the parking experience of side spaces.
5. Good waterproof performance: The system adopts a guiding gutter for structural full waterproof treatment, and has a unique rail and guiding gutter design, which can achieve installation without clamps and bolts, easy to install and reducing installation costs .
6. Good strength:The combination of rail and beam adopts 4-point fixation, which is equivalent to fixed connection and has good strength.
7. Rainwater collection device: this carport mounting system is equipped with a gutter around it, which can effectively achieve rainwater collection, More effective solution to waterproofing issues.
8. Strong adaptability: During the design and development process, the product strictly follows various load standards such as the Australian Building Load Code AS/NZS1170, the Japanese Photovoltaic Structure Design Guide JIS C 8955-2017, the American Building and Other Structures Minimum Design Load Code ASCE 7-10, and the European Building Load Code EN1991, to meet the usage needs of different countries.

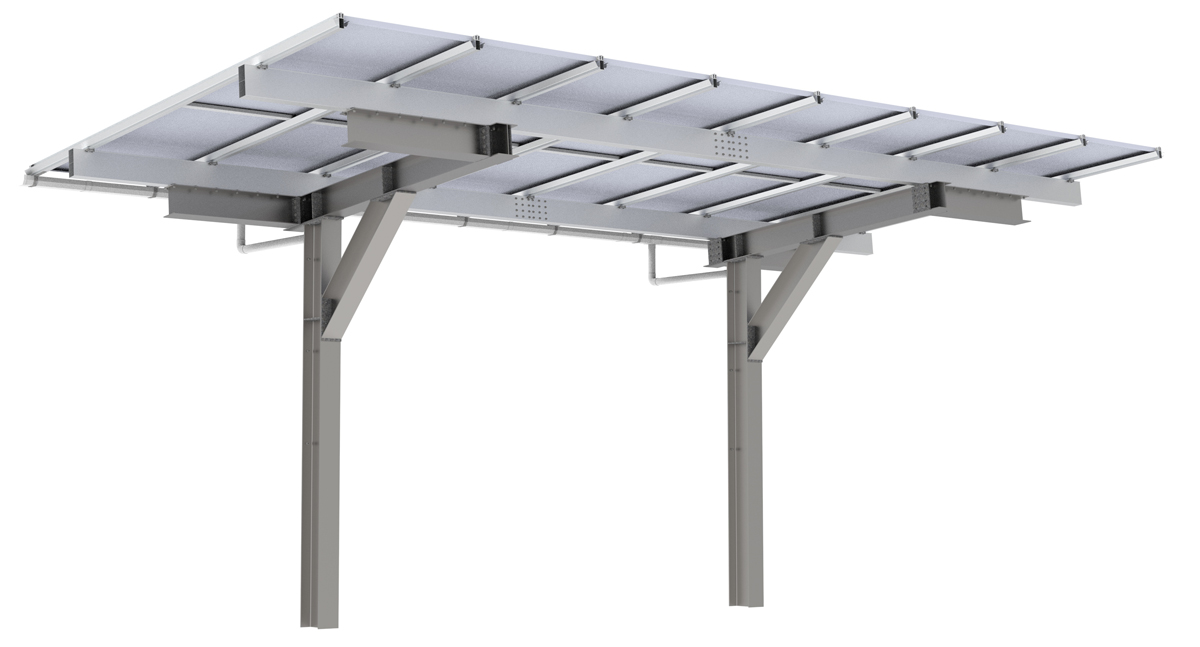

Carport-Mounting-System1

PV-HzRack SolarTerrace—Carport Mounting System

  • Structure of Steel, Guaranteed Strength.
  • Aluminum Rail and Beam, Make it easy to install.
  • Only One Post Behind, Non-blocking Car doors.
  • Slider Panels in Waterproof Rail For Installation, Easy and Fast.
  • Waterproofing Structure.
  • Several types For 4 Cars / 6 Cars / 8 Cars and so on, Also Customized.
  • 10 Years Warranty.
product description04
product description05
product description01
product description02
product description03
product-description

Components

H-250X200_3200-Kit

H 250X200_3200 Kit

H-250X200_1200-Kit

H 250X200_1200 Kit

Post-H-396X199

Post H 396X199

H-Support-Kit

H Support Kit

Leg_Carport-Solar-Mounting-System

Leg_Carport Solar Mounting System

Beam-&-Rail-Clamp-Kit

Beam & Rail Clamp Kit

Non-slipping-Clamp-Kit

Non-slipping Clamp Kit

Rail-Waterproof

Rail Waterproof
