Agricultural Farmland Solar Mounting System

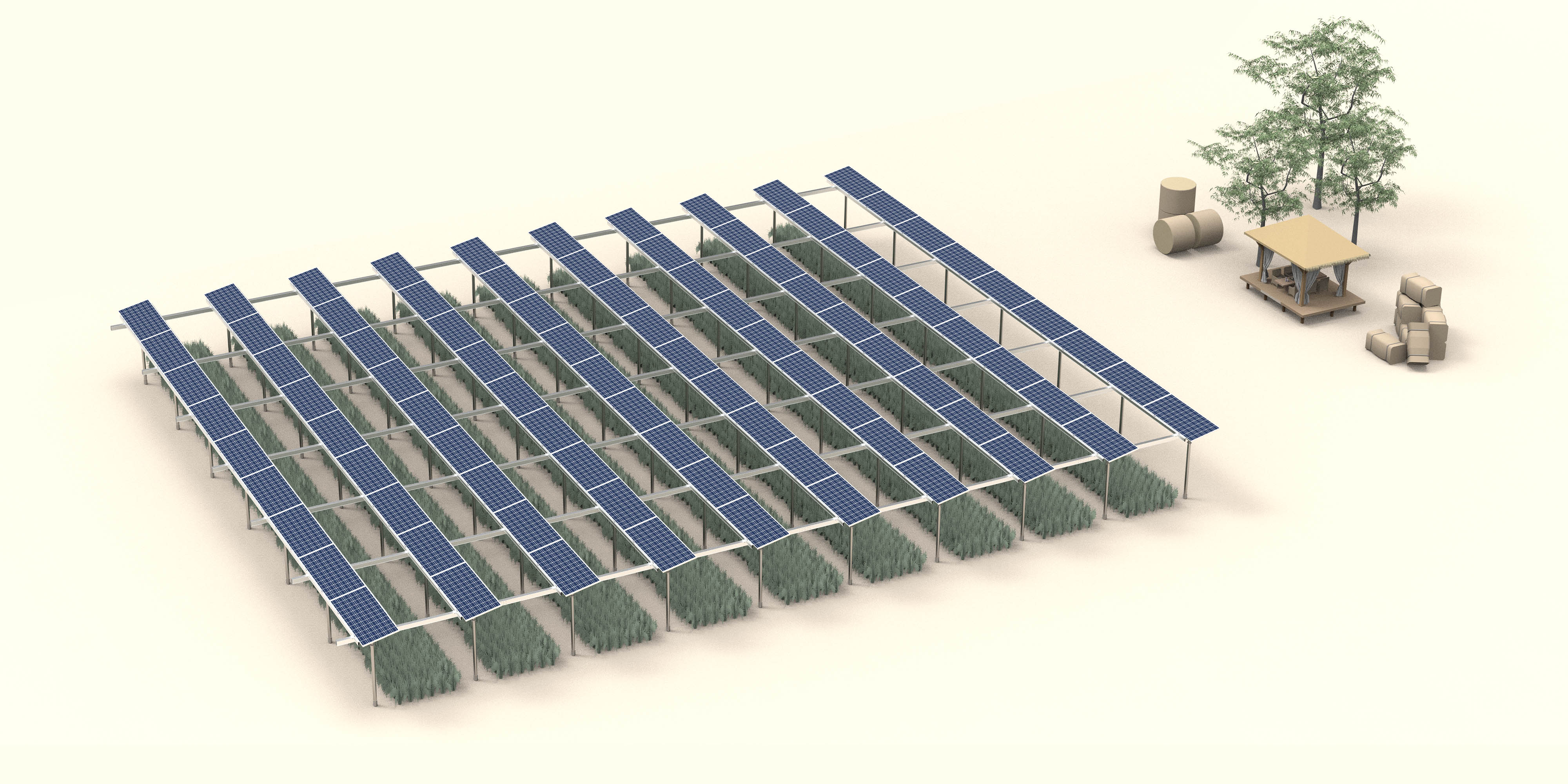

HZ agricultural farmland solar mounting system uses high-strength materials and can be made into large spans, which facilitates the entry and exit of agricultural machines and facilitates farming operations. The rails of this system are installed and tightly connected to the vertical beam, making the entire system connected as a whole, solving the shaking problem and greatly improving the overall stability of the system.


  • 10-year Quality Warranty
  • 25 Years Service Life
  • Structural Calculation Support
  • Destructive Testing Support
  • Sample Delivery Support

Product Detail

Product Tags

Product Application Examples



Easy Installation

We continuously optimize the structural design of the system products. The total number of parts of the product is small, there are few link bolts, and the installation of each connection is simple. At the same time, most materials are pre-assembled, which can save a lot of assembly time and installation labor costs on site.

Suitable for Slopes

The connection of the pillar and the beam adopts a unique patented design, which can be adjusted from east to west at the same time and can be installed on sloping land.

Flexibility and Adjustability

When designing the system, the convenience and practicability of construction and installation are fully considered, so that the whole system has a number of adjustable functions to facilitate construction.For example, the height of the ground pile and the column connector can be adjusted forward and backward.

High Strength

The system adopts high-strength material, and the vertical rail adopts four-point fixation, so that the connection is close to the rigid connection. At the same time, the fixed clamp of the solar modules has an error-proof design to  prevent the modules from being blown by the wind due to incorrect installation of the clamps.

Strong Stability

The rail is directly connected with the vertical beam, making the whole system connected as a whole, and the system is not easy to shake, which greatly improve the stability of the farm shed support.


Technische Daten

Type Ground
Foundation Ground Screw
Installation Angle 0°
Panel Framing Framed
Panel Orientation Horizontal
Design Standards AS/NZSGB5009-2012
JIS C8955:2017
EN1991,ASCE 7-10
Aluminum Design Manual
Material Standards JIS G3106-2008
JIS B1054-1:2013
ISO 898-1:2013
Anti-corrosion standards JIS H8641:2007,JIS H8601:1999
ASTM B841-18,ASTM-A153
ASNZS 4680
Bracket Material Q355Q235B (hot-dip galvanized)
AL6005-T5 (surface anodized)
Fastener Material Zinc-nickel alloy
stainless steel SUS304 SUS316 SUS410
Bracket Color Natural silver
Can also be customized black
