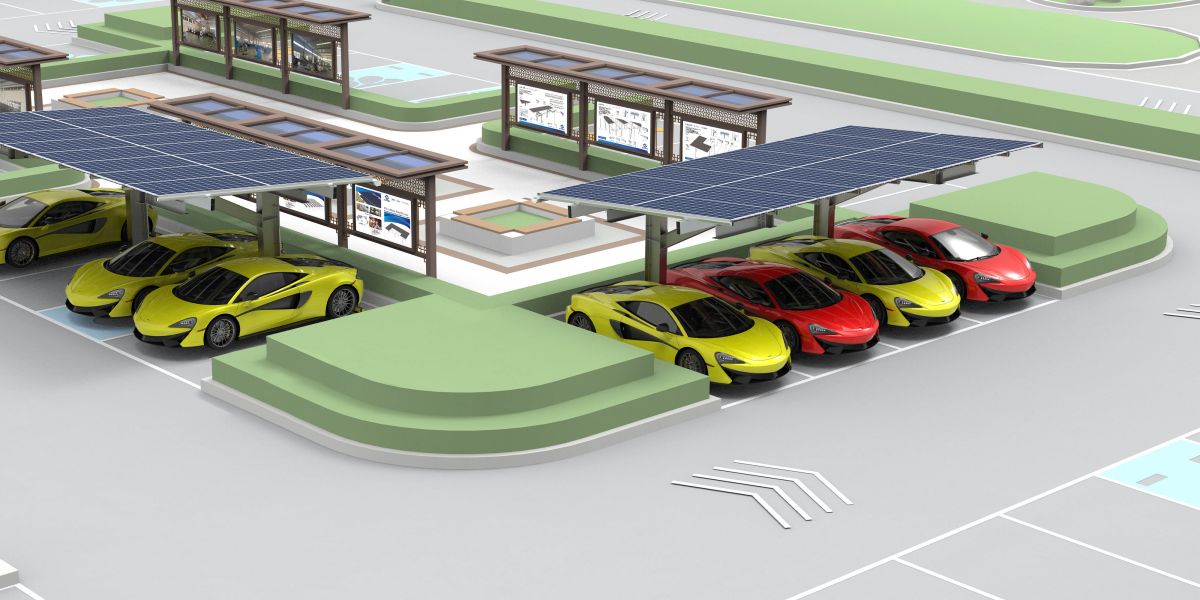

Solar Carport – L Frame

HZ solar carport L frame mounting system has undergone waterproof treatment on the gaps between solar modules, making it a fully waterproof carport system. The entire system adopts a design that combines iron and aluminum, ensuring both strength and convenient construction. Using high-strength materials, it can also be installed in areas with strong winds and heavy snow, and can be designed with large spans, saving costs and facilitating parking.

Send email to us

Other：

10-year Quality Warranty
25 Years Service Life
Structural Calculation Support
Destructive Testing Support
Sample Delivery Support

Product Detail

Product Tags

Product Application Examples

Features

Fully Waterproof Structure

The system adopts a waterproof rail design, and waterproof grooves are also added between the component gaps, which can collect rainwater that seeps down from the component gaps and discharge it to the water guiding device.

High Strength

Steel structure ensures the overall strength of the car shed, making it easy to cope with heavy snow and strong winds. The rail adopts a 4-point fixing method, and the connection is close to the rigid connection, making the structure more stable.

Easy Installation

Adopting a sliding rail eliminates the need for fixing inter clamp and end clamp, greatly improving installation efficiency. The purlin and rail are designed with aluminum alloy, which is lightweight and conducive to construction.

Single Column Design

Single column L frame design, making it convenient for parking and door opening.

Technische Daten

Type	Ground
Foundation	Cement Foundation
Installation Angle	≥0°
Panel Framing	Framed
Panel Orientation	Horizontal Vertical
Design Standards	AS/NZS，GB5009-2012
	JIS C8955:2017
	NSCP2010,KBC2016
	EN1991,ASCE 7-10
	Aluminum Design Manual
Material Standards	JIS G3106-2008
	JIS B1054-1:2013
	ISO 898-1:2013
	GB5237-2008
Anti-corrosion standards	JIS H8641:2007,JIS H8601:1999
	ASTM B841-18,ASTM-A153
	ASNZS 4680
	ISO:9223-2012
Bracket Material	Q355、Q235B (hot-dip galvanized) AL6005-T5 (surface anodized)
Fastener Material	stainless steel SUS304 SUS316 SUS410
Bracket Color	Natural silver Can also be customized (black)

What services can we provide for you?

● Our sales team will provide one-on-one service, introduce products, and communicate needs.
● Our technical team will make the most optimized and complete design according to your project needs.
● We provide installation technical support.
● We provide complete and timely after-sales service.
