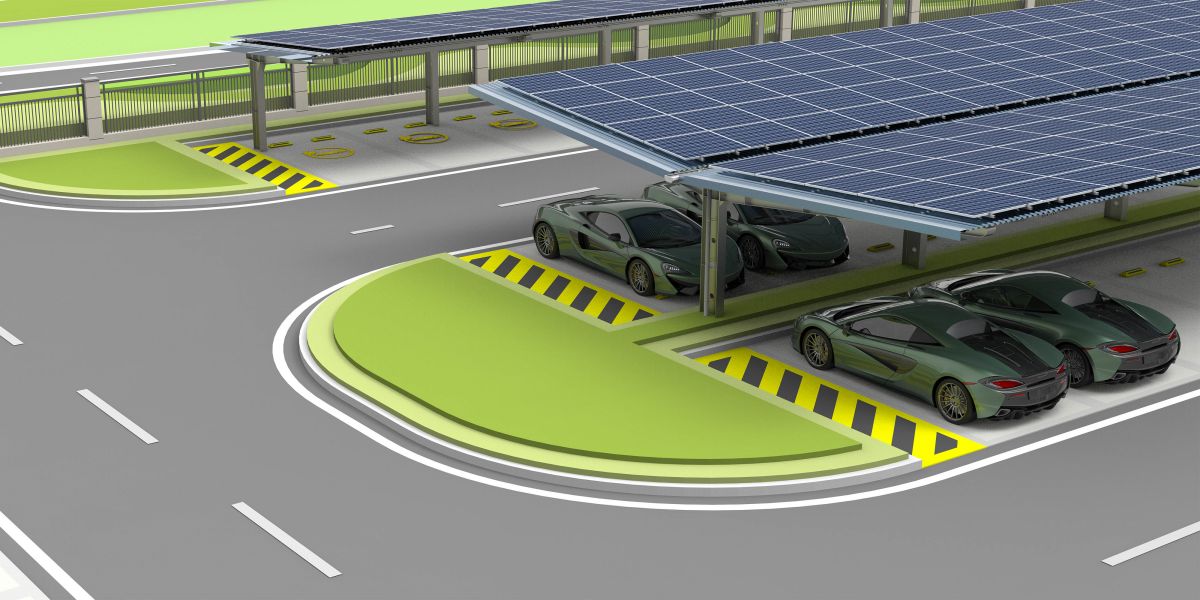

Solar Carport – Y Frame

HZ solar carport Y frame mounting system is a fully waterproof carport system that uses color steel tile for waterproofing. The fixing method of components can be selected according to the shape of different colored steel tiles. The main framework of the entire system adopts high-strength materials, which can be designed for large spans, saving costs and facilitating parking.

Send email to us

Other：

10-year Quality Warranty
25 Years Service Life
Structural Calculation Support
Destructive Testing Support
Sample Delivery Support

Product Detail

Product Tags

Product Application Examples

Features

Fully Waterproof Structure

The system adopts a color steel tile design, which has excellent waterproof effect.

Economical and Nice-looking

Adopting a Y-shaped iron structure design, the system is aesthetically pleasing and cost-effective.

High Strength

Designed with reference to steel structures,it can ensure the overall strength of the car shed and easily cope with heavy snow and strong winds.

Single Column Design

Single column Y frame design make it convenient for parking and door opening.

Technische Daten

Type	Ground
Foundation	Cement Foundation
Installation Angle	≥0°
Panel Framing	Framed
Panel Orientation	Horizontal Vertical
Design Standards	AS/NZS，GB5009-2012
	JIS C8955:2017
	NSCP2010,KBC2016
	EN1991,ASCE 7-10
	Aluminum Design Manual
Material Standards	JIS G3106-2008
	JIS B1054-1:2013
	ISO 898-1:2013
	GB5237-2008
Anti-corrosion standards	JIS H8641:2007,JIS H8601:1999
	ASTM B841-18,ASTM-A153
	ASNZS 4680
	ISO:9223-2012
Bracket Material	Q355、Q235B (hot-dip galvanized) AL6005-T5 (surface anodized)
Fastener Material	stainless steel SUS304 SUS316 SUS410
Bracket Color	Natural silver Can also be customized (black)
