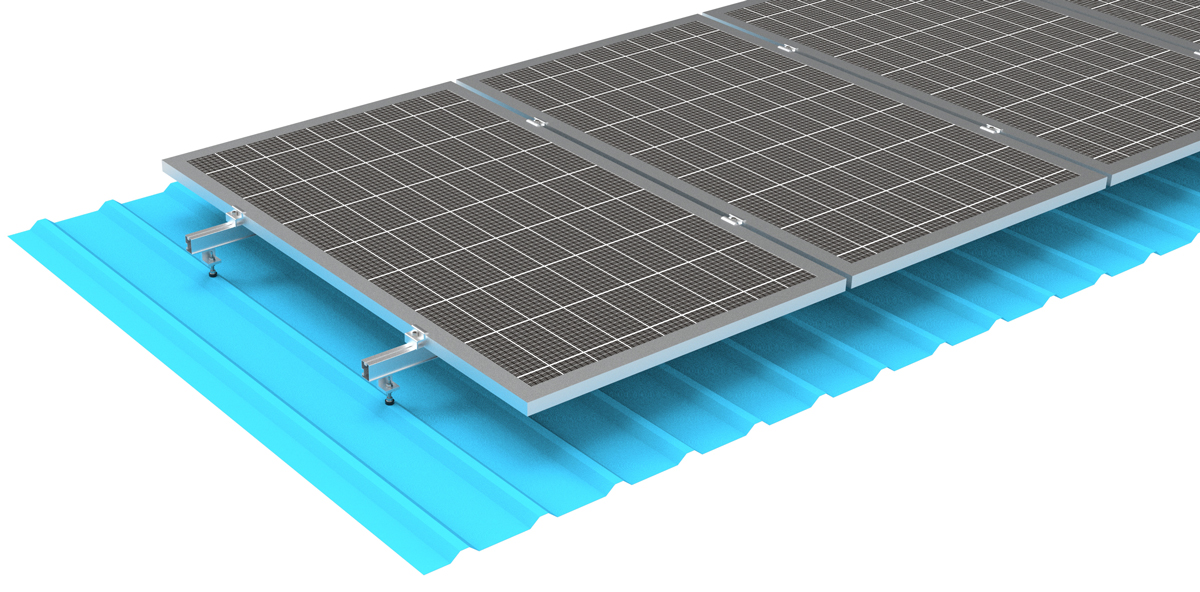

Hanger Bolt Solar Roof Mounting System

This is an affordable solar power installation plan suitable for domestic rooftops. The solar panel support is fabricated from aluminum and stainless steel, and the complete system comprises solely three components: Hanger screws, bars, and fastening sets. It is of low weight and aesthetically pleasing, boasting outstanding rust protection.

Product Detail

Product Tags

It has the following characteristics

1. User-friendly setup: Pre-install configuration, reducing labor and time expenses. Only three parts: hanging screws, rails, and clip kits.
2. Extensive suitability: This system is appropriate for diverse solar panel types, fulfilling varied consumer demands and enhancing its adaptability.
3. Pleasing design: The system design is simple and visually appealing, not only providing dependable installation support but also seamlessly integrating with the roof without compromising its overall appearance.
4. Water-resistant performance: The system is securely connected to the porcelain tile roof, guaranteeing that the solar panel installation won't harm the roof's waterproof layer, ensuring its long-lasting endurance and water resistance.
5. Adjustable functionality: The system offers different kinds of hanging screws that can be adjusted according to the roof material and angle, catering to different installation requirements and ensuring the ideal tilt angle of the solar panel.
6. Enhanced safety: The hanging screws and rails are firmly connected to ensure the stability and safety of the system even under extreme weather conditions such as strong winds.
7. Longevity: Aluminum and stainless steel materials possess exceptional durability, being able to withstand external environmental impacts like UV radiation, wind, rain, and extreme temperature fluctuations, thereby ensuring the system's prolonged lifespan.
8. Versatile adaptability: Throughout the design and development process, the product adheres strictly to various load standards such as the Australian Building Load Code AS/NZS1170, the Japanese Photovoltaic Structure Design Guide JIS C 8955-2017, the American Building and Other Structures Minimum Design Load Code ASCE 7-10, and the European Building Load Code EN1991, in order to fulfill the usage requirements of different countries.


PV-HzRack SolarRoof—Hanger Bolt Solar Roof Mounting System

  • A small number of Components, Easy to Fetch and Install.
  • Aluminum and Steel Material, Guaranteed Strength.
  • Pre-install design, Saving labor and time Costs.
  • Provide Various Types of Hanger Bolts, According to Different Roof.
  • Good Design, High Utilization of Material.
  • Waterproof Performance.
  • 10 Years Warranty.
Hanger Bolt Solar Roof  Mounting System-Detail4
Hanger Bolt Solar Roof  Mounting System-Detail2
Hanger Bolt Solar Roof  Mounting System-Detail3



End clamp 35 Kit


Mid clamp 35 Kit


Rail 45


Splice of Rail 45 Kit


Bolt for Steel Beam M8X80 with L feet


Bolt for Steel Beam M8x120


Hanger Bolt with L feet


Hanger Bolt


L feet
