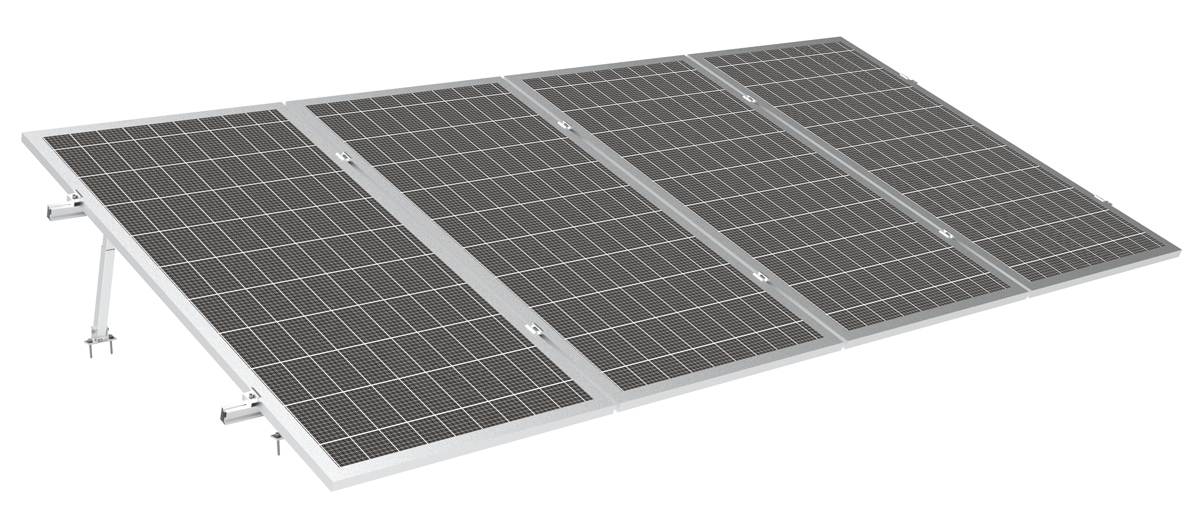

Adjustable Tilt Solar Mounting System

This is an economical photovoltaic bracket installation solution suitable for industrial and commercial rooftops. The photovoltaic bracket is made of aluminum alloy and stainless steel, with excellent corrosion resistance. The installation angle of photovoltaic modules can be increased on the roof to improve the power generation efficiency of photovoltaic power stations, which can be divided into three series: 10-15 °, 15 ° -30 °, 30 ° -60 °.

Product Detail

Product Tags

It has the following characteristics

1. Convenient setup: Pre-installation design, reducing labor and time expenses.
2. Broad compatibility: This system accommodates different solar panel types, fulfilling diverse consumer demands and enhancing its suitability.
3. Aesthetically pleasing layout: The system design is simple and visually pleasing, offering reliable installation support and seamlessly integrating with the roof's appearance.
4. Water-resistant performance: The system is securely connected to the porcelain tile roof, safeguarding the roof's waterproof layer during solar panel installation, thus increasing roof durability and water resistance.
5. Versatile adjustment: The system offers three adjustment ranges, allowing for customization according to installation angles, meeting various installation requirements, optimizing the solar panel's tilt angle, and increasing power generation efficiency.
6. Optimal safety: The adjustable tilt legs and rails are solidly connected, ensuring system stability and safety, even in extreme weather conditions like strong winds.
7. Enduring quality: Aluminum and stainless steel materials exhibit exceptional durability, withstanding external influences such as UV radiation, wind, rain, and extreme temperature changes, thus guaranteeing the system's long-term lifespan.
8. Robust flexibility: Throughout the design and development process, the product strictly adheres to multiple load code standards, including the Australian Building Load Code AS/NZS1170, the Japanese Photovoltaic Structure Design Guide JIS C 8955-2017, the American Building and Other Structures Minimum Design Load Code ASCE 7-10, and the European Building Load Code EN1991, catering to the specific requirements of various countries.


PV-HzRack SolarRoof—Adjustable Tilt Solar Mounting System

  • A small number of Components, Easy to Fetch and Install.
  • Aluminum and Steel Material, Guaranteed Strength.
  • Pre-install design, Saving labor and time Costs.
  • Provide three Types of Products, According to Different Angle.
  • Good Design, High Utilization of Material.
  • Waterproof Performance.
  • 10 Years Warranty.
Adjustable Tilt Solar Mounting System-Detail3
Adjustable Tilt Solar Mounting System-Detail1
Adjustable Tilt Solar Mounting System-Detail2



End clamp 35 Kit


Mid clamp 35 Kit


Rail 45


Splice of Rail 45 Kit


Fixed Tilt Back Leg preassembly


Fixed Tilt Front Leg preassembly
