ECO Y Frame Cantilever Solar Carport System 10-Panel Single-Sided Column Design Aluminum PV Parking Structure
| مو: | 1 مجموعة |
| سعر: | USD 850-1,150 / Set |
| التعبئة والتغليف القياسية: | منصة فولاذ للخدمة الشاقة مع فيلم VCI، صندوق خشبي من فئة التصدير |
| فترة التسليم: | 15-25 يوم عمل |
| طريقة الدفع: | / تي تي، خطاب الاعتماد، ويسترن يونيون |
| سعة العرض: | 400 مجموعة شهريا |
Cantilever Solar Carport Design
,Single Sided Column PV Canopy
,Space Efficient Aluminum Parking Structure

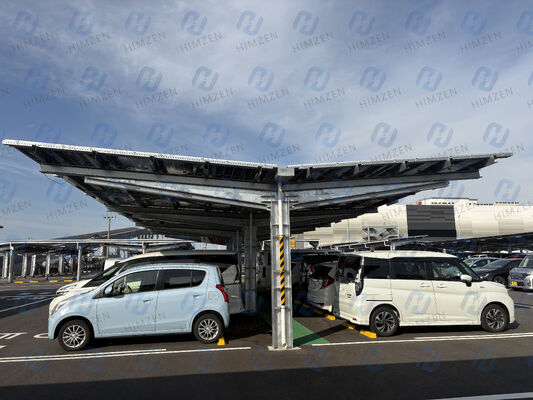

The ECO Y Frame Cantilever Carport features an innovative single-sided column design that positions all support columns along one edge, creating column-free vehicle access from three sides. Accommodating 10 photovoltaic panels, this space-efficient configuration is ideal for parking lots where column placement would otherwise reduce usable parking width.
The 6005-T5 aluminum alloy frame is counterbalanced by a Q235B steel-reinforced concrete foundation, providing robust structural stability. The cantilever span extends 2,500mm from the column center line, covering a standard parking bay without intermediate supports.
| Parameter | Specification |
|---|---|
| Model Number | ECO-YF-CN10 |
| Structure Type | Y-Frame Cantilever Single-Sided |
| Main Material | Q235 / S350GD |
| Counterweight System | Q235B Steel Frame + RC Foundation |
| Panel Capacity | 10 Panels (Portrait) |
| Cantilever Span | 2,500 mm from Column Center |
| Usable Parking Width | 2,500 mm |
| Structure Height | 2,200 - 2,800 mm |
| Tilt Angle | 5° Fixed |
| Wind Load Rating | Up to 55 m/s |
| Snow Load Rating | Up to 1.4 kN/m² |
| Foundation | RC Base + Counterweight 1000x1000x1200mm |
| Warranty | 15 Years Structural |
| Certification | ISO 9001:2015, CE, TUV |
- Narrow Parking Lots: Maximizes usable parking space in lots with limited width where traditional two-column carports would reduce vehicle capacity.
- Roadside Parking: Ideal for linear parking configurations along road edges or property boundaries where columns must be on only one side.
- EV Charging Corridors: Creates open, accessible EV charging bays where drivers need unrestricted access around their vehicles.
- Premium Commercial Properties: Provides architecturally distinctive solar canopy with clean sightlines appreciated by upscale developments.
HzRack operates a 15,000 square meter facility in Xiamen with 6 automated CNC production lines. Our engineering team specializes in complex structural designs including cantilever and long-span configurations, supported by FEA software for optimization. Annual capacity exceeds 800 MW.
QC lab includes salt spray testing, tensile testing, and full-scale load testing for cantilever structures. Products exported to 50+ countries.
