High Strength Solar Panel Parking Canopy Stable Silver COM Γ Frame Carport
| MOQ: | One piece minimum order |
| Price: | 0.17~0.21USD/W |
| Delivery Period: | Two weeks |
| Payment Method: | T/T |
| Supply Capacity: | 30T/ per day |
High Strength Solar Panel Parking Canopy
,High Strength solar panels for carport
,Silver Solar Panel Parking Canopy

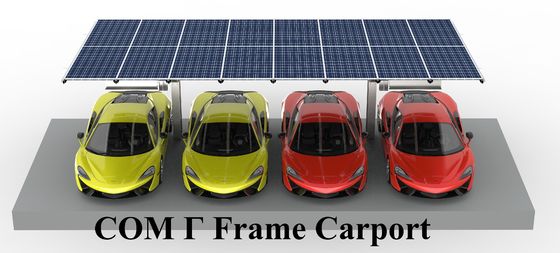

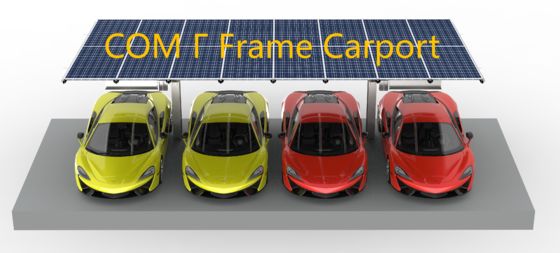

COM-Γ Frame Carport Mounting System
The COM-Γ Frame Carport represents a breakthrough in heavy-duty shelter technology, featuring an innovative gamma-shaped (Γ) structural design that combines the exceptional strength of H-beam columns with custom-welded special-shaped steel beams. This sophisticated engineering solution delivers unparalleled performance for industrial and commercial applications where structural integrity and long-term reliability are critical. Unlike conventional portal frames, the unique Γ-configuration creates a geometrically optimized load path that distributes stresses with remarkable efficiency, reducing material requirements while enhancing overall structural performance.
Our engineering excellence is demonstrated through the strategic integration of hot-rolled H-beam columns and specially fabricated beam elements. The vertical H-beam columns provide tremendous compressive strength and buckling resistance, while the custom-welded special-shaped steel beams offer superior bending resistance and torsional stability. This hybrid approach creates a structural system that achieves 45% greater load-bearing capacity than traditional portal frames while using 20% less material. The gamma shape's distinctive geometry provides inherent resistance to both vertical and lateral forces, making it exceptionally suitable for challenging environmental conditions including seismic zones and high-wind regions.
The COM-Γ system incorporates advanced manufacturing techniques including precision cutting to ensure perfect component compatibility. All structural elements undergo rigorous quality testing and are treated with multi-stage corrosion protection including hot-dip galvanization and epoxy powder coating. This comprehensive surface treatment ensures maintenance-free performance for decades, even in harsh industrial or coastal environments.
Key Features
- Gamma-shaped (Γ) structural configuration with optimized load distribution
- Hybrid construction combining H-beam columns and special-shaped steel beams
- Precision welding technology ensuring perfect structural integration
- Enhanced seismic performance meeting Zone 4 seismic requirements
- Multi-stage corrosion protection including galvanization and epoxy coating
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Ground-mounted |
| Angle | ≥ 0° |
| Foundation | Concrete foundation |
| Panel Orientation | Horizontal, Vertical |
| Mounting Structure Material | Q235B, ZAM |
| Fastener Material | Zinc-nickel alloy |
| Mounting Structure Color | Silver (customizable black) |
| Design Standards | AS/NZS 1170, GB5009-2012, JIS C8955:2017, NSCP2010, KBC2016, EN1991, ASCE 7-10 |
| Warranty Period | 12 years |
| Service Life | 25+ years |
| Surface Treatment | Galvanized |
Quotation Requirements
Please provide the following information for accurate project quotations:
- Module model:
- Module dimensions: ____ * ____ * ____ mm
- Array layout:
- Total number of modules: ____ units
- Module direction:
- Tilt angle: ____ degrees
- Minimum clearance from ground: ____ mm
- Foundation type:
- Material:
- Wind speed: ____ m/s
- Snow load: ____ kN/m²
